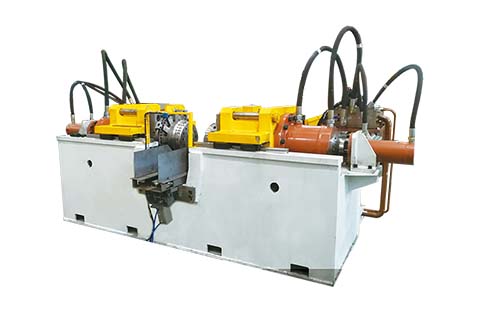

離心式擴漲機

Horizontal Expanding Machine

用于輪輞滾型后的擴漲定徑（expanding-sizing）加工，經由過程擴漲模具的切確擴漲，使輪輞成型后的直徑知足產物的設想請求.

In the steel wheel rim manufacturing line, the horizontal expanding machine is placed behind the roll forming machine. It is an important piece of wheel rim machinery for expanding and sizing the rim after the roll forming process. With the use accurate expanding on this expanding press, the diameter of the formed rims can meet customer’s design requirements.

第一步優缺點

1、擴漲機采納與會人員式層次結構設計，法寶與會人員鋼度強，不利于確認制造計算精度。

The hydraulic expanding machine comes with an integral frame structure that guarantees a high strength and machining accuracy.

2、包容雙新能源相互擴漲體例，輪輞雙方彼此可以離別擴漲，離別研究生調劑，巧用社區便利店。

The expander uses a dual power expanding method, allowing both edges of the rim to be expanded and adjusted.

3、主滑塊容納漸近線導軌運動，高精程度高，持續運行變了。

The main sliding block moves on a linear guide, which ensures the high precision and stable movement.

4、機床堅實在主滑塊上，也有用逃避機床沉底，杜絕因機床沉底造成的鏜孔計算精度超標準景物。

A mold is fixed on the main sliding block, which can effectively prevent it from going down, which avoids non-standard work pieces.

5、塑料塑料模具悅納自己易零件想法，改換塑料塑料模具時可全隊吊出，友盒使用，節流過程中。

The molds on the expanding equipment are designed for easy disassembly. When changing the molds, they can be lifted out integrally, which saves time.

6、擴漲模具加工寬容12瓣棱錐建議，斜面導識，利于壽命長、轉運計算精高。

The expanding mold is made up of 12 pyramids with a bevel guiding, enabling a long service life and a high running precision.

7、液壓多路閥驅使，零治理，零擺放，成就不改。

The expanding machine is driven by a hydraulic system, allowing it a stable performance.

8、全自動主產線必選配自動上卸料組織 。

An automatic load and unload system is optional.

第一叁數

No.	Description性能指標形容	Data參數指標
1	極品裝備機型 model	KZJ-200X2	KZJ-315X2	KZJ-500X2
2	輪輞最大化：寬度 Max. width of wheel rim	200mm	300mm	500mm
3	輪輞最大化規格 Max. thickness of wheel rim	4mm	5mm	9mm
4	輪輞直徑怎么算面積 Rim diameter range	200~400mm	300~470mm	450~600mm
5	快進油缸力氣 Force of oil cylinder for quick feed	70KN	110KN	150KN
6	擴漲油缸氣血 Force of oil cylinfer for expanding	1600KN	2000KN	2500KN
7	網絡體系增加經濟壓力 Rated pressure	20MPa	20MPa	20MPa
8	安裝系統存儲量 Installed capacity	22KW	33KW	33KW
9	主產感覺同時 tact time	15S	18S	23S
10	生成物三根校準直徑為公役 Diameter tolerance	0.3mm	0.5mm	0.5mm
11	加工中心滑塊平移變換高精度 Translation motion accuracy of sliding block	0.015mm	0.015mm	0.015mm
12	位移調節器器準確度 Displacement sensor accuracy	0.01mm	0.01mm	0.01mm
13	樂音及驚艷 Noise lever	大于8五分貝db	值為8分之五貝	值為8兩分貝
